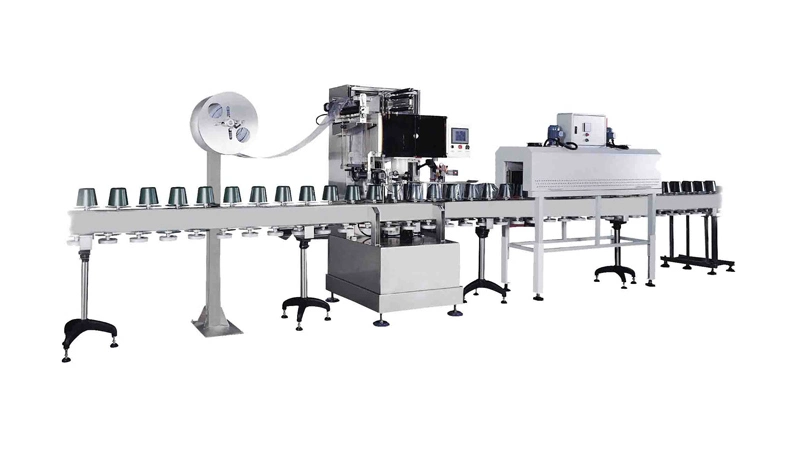

Single Head Shrink Sleeve Applicator
Overview

Introduction of Automatic Shrink Sleeve Label Applicator
The Automatic Shrink Sleeve Applicator is designed to apply shrink sleeve labels onto containers, making it ideal for industries such as food, beverages, personal care, cosmetics, and pharmaceuticals. Known for its flexibility and efficiency, this applicator can be seamlessly integrated with equipment like liquid filling machines, capsule and tablet counting lines, and shrink wrapping machines, creating a fully automated production line.
Working Principle of Automatic Shrink Sleeve Label Applicator
The sleeve, supplied as a continuous web with printed graphics, is unrolled from the reel through rollers and directed onto a forming tube, which opens and readies the sleeve for cutting. A rotating blade system precisely cuts the sleeve to the required length, positioning it onto the product as a label. The labeled product then moves into a steam or optional electric shrinking tunnel, where the sleeve shrinks to fit perfectly around the container’s contours.
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| PLC | Delta / Mitsubishi |
| HMI / MMI | Delta / Mitsubishi - 7” |
| Servo Motor | Panasonic / Mitsubishi |
| Servo Driver | Panasonic/ Mitsubishi |
| AC Frequency Drive | Delta/ Mitsubishi |
| Sensors | Leuze / Panasonic / Sick / Optex |
| Contactor | Telemecanique / Schneider |
| Relay | Any Well Known Brand |
MATERIAL OF CONSTRUCTION OF SHRINK SLEEVE APPLICATOR:
| Main Body | S.S. 304 |
| Sleeve Mandrill | UHMW / Nylon |
| Feed Worm Mounting Unit | Anodized Aluminum |
| Bottle Carrying Unit | Anodized Aluminum |
| All Shafts | Mild Steel EN 8 Zink Plated |
| Sleeve Pulling Roller | Special Rubber |
| Sleeve Inserting Roller | Special Rubber |
Machine Specification
| Dimension | 2100L X 850 W X 2000 H |
| Weight | 400 Kgs. Approx. |
| Main Input Power Supply | 230 Volts / Single Phase+ Neutral / AC |
| Power Consumption | 1.5 KW |
| Speed | Up to 400 BPM |
| Bottle Diameter Range | 28 mm To 125 mm |
| Bottle Height Range | 50 mm To 280 mm |
| Sleeve Thickness | 0.03 mm To 0.08 mm |
| Sleeve Roll Diameter | 300 mm To 400 mm |
| Sleeve Roll Diameter | 76 mm (3 Inches) |
