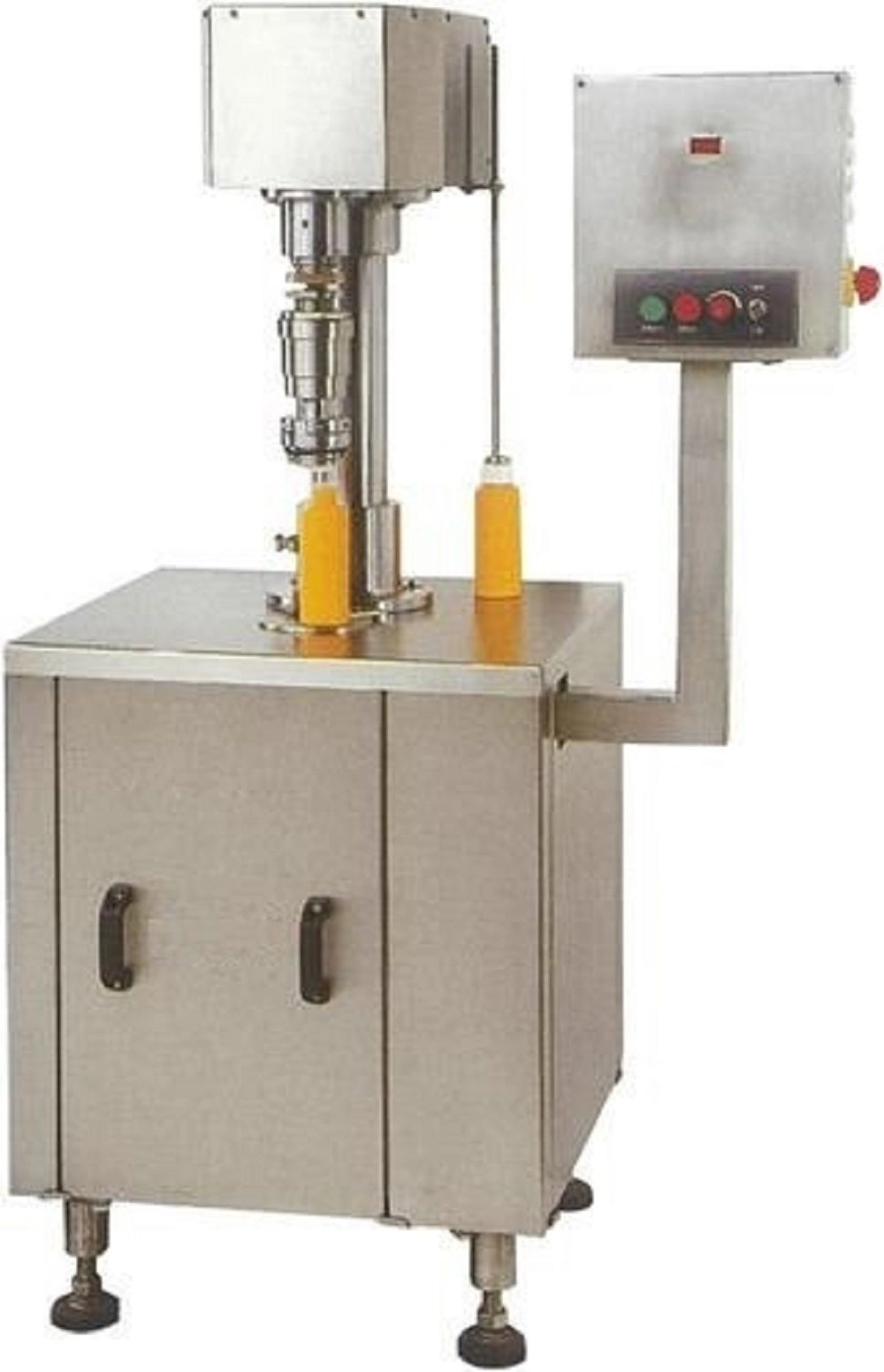

Semi-Automatic Single Head Capping Machine
Overview
Automatic Capping Machine Manufacturer
The Semi-Automatic Screw Capping Machine is precision built on sturdy welded MS frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.
Operation
Containers have to place manually below the rotating head at platform of machine, where the sealing head is performing perfect operation of capping.
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| Output/Hour* | 800 to 1000 |
| No. of Sealing Head | 1 No. |
| Electric Requirement | 230 V, 50 HZ Single Phase |
| Machine Dimensions | 450 mm (L) x 550 mm (W) x 1300 (H) Approx. |
| Screw Cap Specification (Diameter**) | 19mm to 38 mm*** |
| Screw Cap Specification (Height**) | 15mm to 18.3 mm |
| Net Weight | 150 kg |
Utility Requirement
| Electrical Supply | 1 Phase + Neutral + Earthing |
| Electrical Load | 0.75 KW |
Salient Features
- SS elegantly matt finished body.
- Low noise level, low power consumptions.
- SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
- Adjustable bottle height gauge for easy and quick setting.
- Adjustable bottle height gauge for easy and quick setting.
