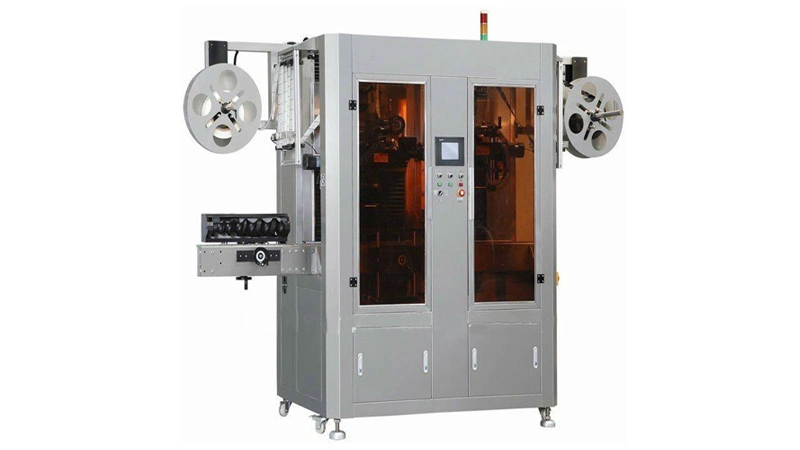

Double Head Shrink Sleeve Applicator
Overview
Introduction of Automatic Shrink Sleeve Label Applicator
The Automatic Shrink Sleeve Applicator is utilized for applying shrink sleeve labels onto containers, making it highly suitable for food, beverage, personal care, cosmetic, and pharmaceutical industries. It offers excellent flexibility and efficiency, allowing it to connect seamlessly with other equipment like liquid filling machines, capsule and tablet counting lines, and shrink wrapping machines to form a comprehensive production line.
Working Principle of Automatic Shrink Sleeve Label Applicator
The sleeve, provided as a continuous web with printed graphics, is unrolled from the reel and guided through rollers onto a forming tube, which opens and prepares it for cutting. A rotating blade system then cuts the sleeve to the required length, positioning it onto the product as a label. The labeled product is subsequently conveyed into a steam or optional electric shrinking tunnel, where the sleeve conforms perfectly to the container’s shape.
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| PLC | Delta / Mitsubishi |
| HMI / MMI | Delta / Mitsubishi - 7” |
| Servo Motor | Panasonic / Mitsubishi |
| Servo Driver | Panasonic/ Mitsubishi |
| AC Frequency Drive | Delta/ Mitsubishi |
| Sensors | Leuze / Panasonic / Sick / Optex |
| Contactor | Telemecanique / Schneider |
| Relay | Any Well Known Brand |
MATERIAL OF CONSTRUCTION OF SHRINK SLEEVE APPLICATOR:
| Main Body | S.S. 304 |
| Sleeve Mandrill | UHMW / Nylon |
| Feed Worm Mounting Unit | Anodized Aluminum |
| Bottle Carrying Unit | Anodized Aluminum |
| All Shafts | Mild Steel EN 8 Zink Plated |
| Sleeve Pulling Roller | Special Rubber |
| Sleeve Inserting Roller | Special Rubber |
Machine Specification
| Dimension | 2100L X 850 W X 2000 H |
| Weight | 400 Kgs. Approx. |
| Main Input Power Supply | 230 Volts / Single Phase+ Neutral / AC |
| Power Consumption | 1.5 KW |
| Speed | Up to 400 BPM |
| Bottle Diameter Range | 28 mm To 125 mm |
| Bottle Height Range | 50 mm To 280 mm |
| Sleeve Thickness | 0.03 mm To 0.08 mm |
| Sleeve Roll Diameter | 300 mm To 400 mm |
| Sleeve Roll Diameter | 76 mm (3 Inches) |
