Double Head Screw Capping Machine
Overview
Key Features
High speed 100/200/300
Servo PLC based Operation
Accurate label placement
No change parts requirement
Very less down time for change over
One Touch Speed Synchronization
Specification
| Output | Up to 60 BPM |
| Direction of Movement | Left to Right |
| No. of Sealing Head | 2 Nos. |
| Power | Main Motor | 1 HP/415 Volts / 50 Hz Crompton make 0.5 HP/415 V/50 HZ, Crompton / Bonfiglioli make |
| Consumption | Conveyor | |
| PLC | Mitsubishi make |
| Height of Conveyor | 850 mm (+/-50 mm) Adjustable |
| Length of Conveyor | 6ft long (SS Slate Chain Conveyor) |
| A.C. Drive | 0.5 HP, Delta / Mitsubishi make |
| Sensor | Leuze / Sick Make |
| Pneumatic Components | Festo make |
| Change parts required | Container: Star Wheel, Back Guide. |
Input Specification
We can supply as per customer requirements.
Utility Requirement
| Electrical Supply | 1 Phase + Neutral + Earthing |
| Electrical Load | 1.2 KW |
Salient Features
- No container No cap arrangement.
- SS elegantly matt finished body.
- Single motor synchronizes conveyor, star wheel.
- Adjustable height of conveyor belt, to align with other machine of the line.
- 6 Ft Conveyor to convey the products in feed & out feed.
- Sealing pressure can be varied to suit different gauges and size of caps. Low noise level, low power consumptions.
- SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
- Synchronized A.C. drives to Synchronize, Conveyor, Star Wheel and Platform Turret.

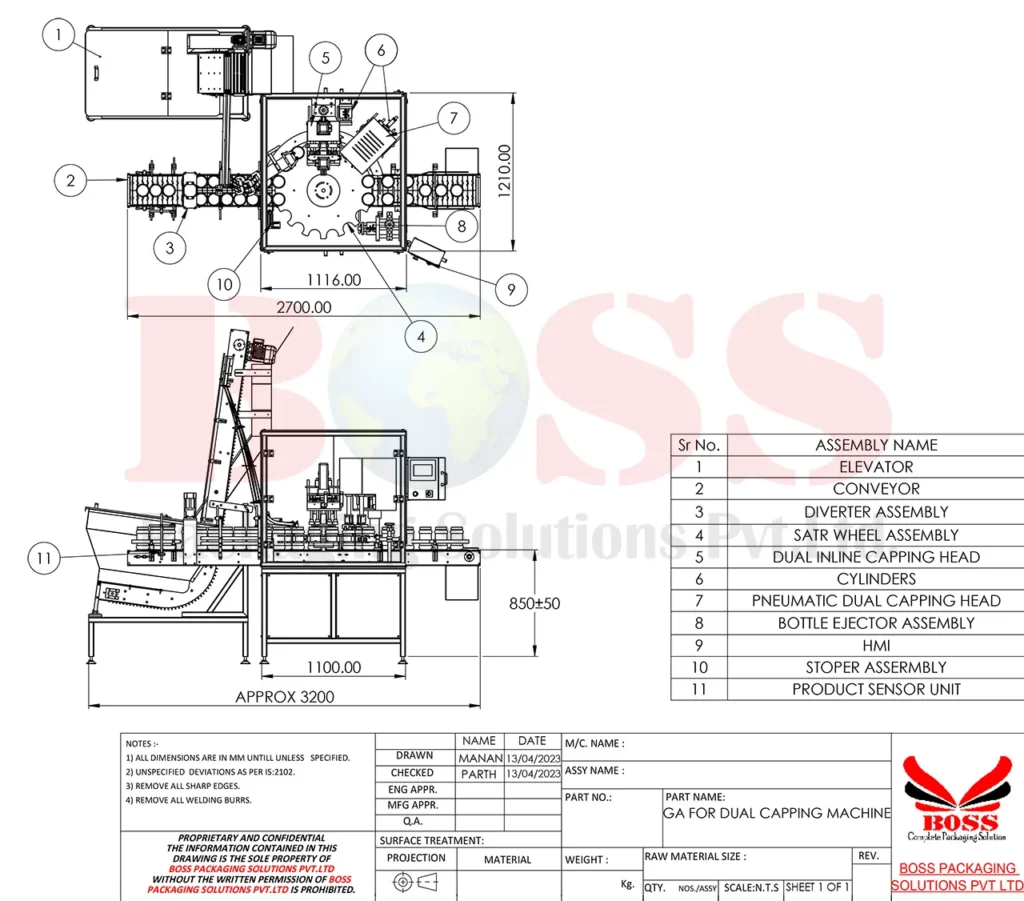

Dimension
