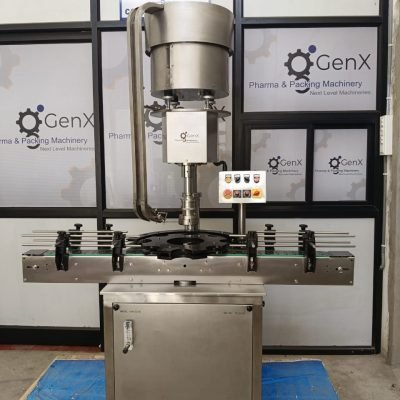

Automatic Single Head Screw Capping Machine

Cap Sealing Machine Manufacturer

Automatic Screw cap sealing machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on SS frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine

The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, meanwhile the bottle pick up a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of capping.

High speed 100/200/300

Servo PLC based Operation

Accurate label placement

No change parts requirement

Very less down time for change over

One Touch Speed Synchronization

Output	Up to 40 BPM
Direction of Movement	Left to Right
No. of Sealing Head	1 No.
Main Motor	1 HP / 415 Volts / 50 Hz Hindustan
Cap Feeding Bowl	300 Watt, Magnetic Coil
Conveyor	0.5 HP / 415 V / 50 HZ, Hindustan / Bonfiglioli make
Height of Conveyor	850 mm (+/- 50 mm) Adjustable
Length of Conveyor	6ft long (SS Slate Chain Conveyor)
A.C. Drive	0.5 HP, Delta / Mitsubishi make
Sensor	Leuze / Sick Make
Change parts required	(A) Container: Star Wheel, Back Guide, Feed Worm (B) Cap Die, Delivery Chute, Bowl

Utility Requirement

Electrical Supply	1 Phase + Neutral + Earthing
Electrical Load	1.2 KW

Salient Features

No container No cap arrangement.
SS elegantly matt finished body.
Single motor synchronizes conveyor, star wheel.
Adjustable height of conveyor belt, to align with other machine of the line.
6 Ft Conveyor to convey the products in feed & out feed.
Low noise level, low power consumptions.
Synchronized A.C. drives to Synchronize, Conveyor, Star Wheel and Platform Turret & Capping Bowl.
Adjustable bottle height gauge for easy and quick setting.
The unit is made compact & versatile as per GMP norms.
