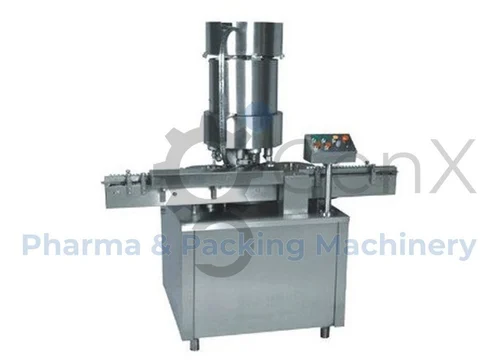

Automatic Single Head ROPP Capping Machine
Overview
The Automatic ROPP Cap Sealing Machine is a versatile, self-supported unit mounted on stainless steel legs with an adjustable height system. Built on a precision-engineered SS frame, the machine is fully enclosed with stainless steel panels, and service doors are provided for easy maintenance, ensuring durability and efficient operation.
Overview
Containers are transported along the conveyor belt and fed into a star wheel, positioning each container below the sealing head in the indexing section. As each bottle reaches this point, it picks up a cap from the delivery chute of the cap feeding bowl. The body and neck of the container are then accurately positioned under the rotating head, where the sealing head performs precise threading and sealing operations, ensuring a secure and consistent seal on every container.
Specification
Output/Hour* | 1000 to 1800 Bottles |
Direction of Movement | Left to Right |
No. of Sealing Head | 1 No. |
Cap Feeding Bowl | 300 Watt, Magnetic Coil |
Main Motor | 1 HP / 415 Volts / 50 Hz |
Height of Conveyor | 850 mm (+/- 50 mm) Adjustable |
Length of Conveyor | 6ft long (SS Slate Chain Conveyor) |
A.C. Drive | 0.5 HP, Delta / Mitsubishi make |
Sensor | Leuze / Sick Make |
Change Parts required | (A) Container: Star Wheel, Back Guide, Feed Worm (B) Cap Die, Delivery Chute, Bowl |
Input Specification
ROPP Cap Specification (Diameter**) | 19 mm to 38 mm*** |
ROPP Cap Specification (Height**) | 15 to 18.3 mm |
Container Size** (Round Shape) | Ø 28 mm to Ø 100 mm Respectively height 58 mm to 240 mm (Height option for other bottle height available) |
Container Size**(Flat / Square) | 15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm x 240 mm (Height option for other bottle height available) |
Utility Requirement
Electrical Supply | 1 Phase + Neutral + Earthing |
Electrical Load | 1.5 KW |
Salient Features
- No container No cap arrangement.
- SS elegantly matt finished body.
- Single motor synchronizes conveyor, star wheel.
- Adjustable height of conveyor belt, to align with other machine of the line.
- Sealing pressure can be varied to suit different gauges and size of caps.
- Low noise level, low power consumptions.
- Synchronized A.C. drives to synchronize, Conveyor, Star wheel and Platform turret & capping bowl.
- Adjustable bottle height gauge for easy and quick setting.
- The unit is made compact & versatile as per GMP norms.
